Insulation Testers
Safety and performance are two of the most critical requirements for any electrical system. Good quality insulation, a properly working grounding system and active protection assure the safety of people, electrical systems and buildings, and protect them against electrocution, fire and other equipment damage.

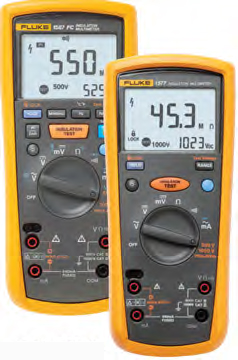

Fluke 1587 FC and 1577 Insulation Multimeters
Two powerful tools in one.
The Fluke 1587 FC and 1577 Insulation Multimeters combine a digital 1 kV insulation tester with a full featured, true-RMS digital multimeter in a single compact, handheld unit, which provides maximum versatility for both troubleshooting and preventive maintenance.
  • Insulation test (1587 FC: 0 01 MO to 2 GO) (1577: 0 1 MO to 600 MO)
  • Insulation test voltages (1587 FC: 50 V, 100 V, 250 V, 500 V, 1000 V), (1577: 500 V, 1000 V) for many applications
  • Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
  • Auto-discharge of capacitive voltage for added user protection
  • Filter for motor drive measurements ( 1587 FC only)
  • AC/DC voltage, DC millivolts, AC/DC milliamps, resistance (0), and continuity
  • Capacitance, diode test, temperature, Min/Max, and frequency (Hz) (1587 FC only)
  • Auto power off to save battery power
  • Large display with backlight and large digits
  • Included accessories: Remote probe, test leads and probes, alligator clips, (Type K thermocouple, 1587 FC only)
  • Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
  • Rugged, utility hard case allows you to bring everything you need for the job
  • Three-year warranty

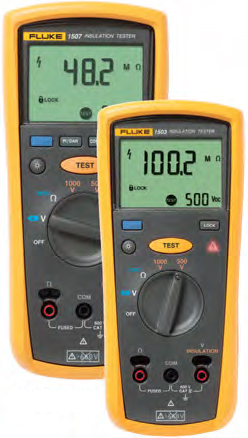

Fluke 1507 and 1503 Insulation Resistance Testers
These lightweight, affordable insulation testers are perfect for troubleshooting, commissioning and preventive maintenance applications.
  • Automatic calculation of polarisation index and dialectric absorption ratio (1507 onlyl
  • Multiple test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V (1507 onlyl
  • Remote test probe for rapid testing
  • Insulation test range O 01 MO to 10 GO (15071, 0 1 MO to 2000 MO (15031
  • Compare (Pass/Faill function for repetitive tests (1507 only)
  • Live circuit detection prevents insulation test if voltage
  • 30 V is detected
  • Auto-discharge of capacitive voltage
  • AC/DC voltage: 0 1 V to 600 V
  • Lo ohms/Earth-bond continuity (200 mAI for checking connections and motor windings
  • Resistance: 0 01 0 to 20 00 0
  • One year warranty
NEW

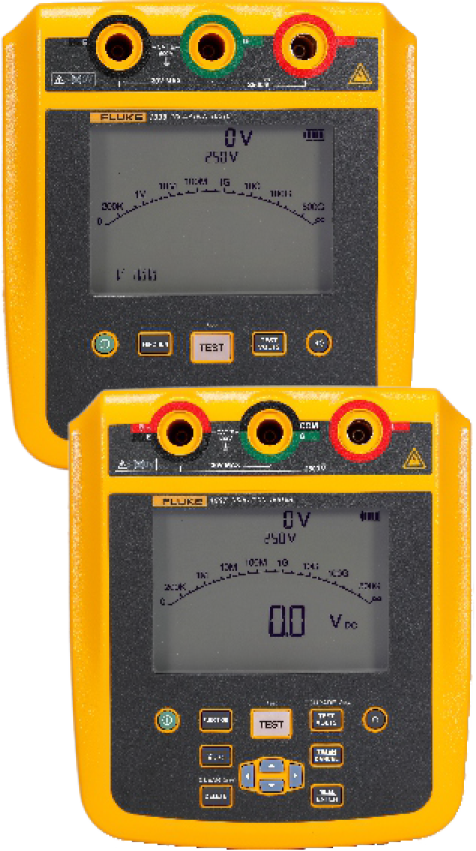

Fluke 1535 and 1537 Insulation Resistance Meter

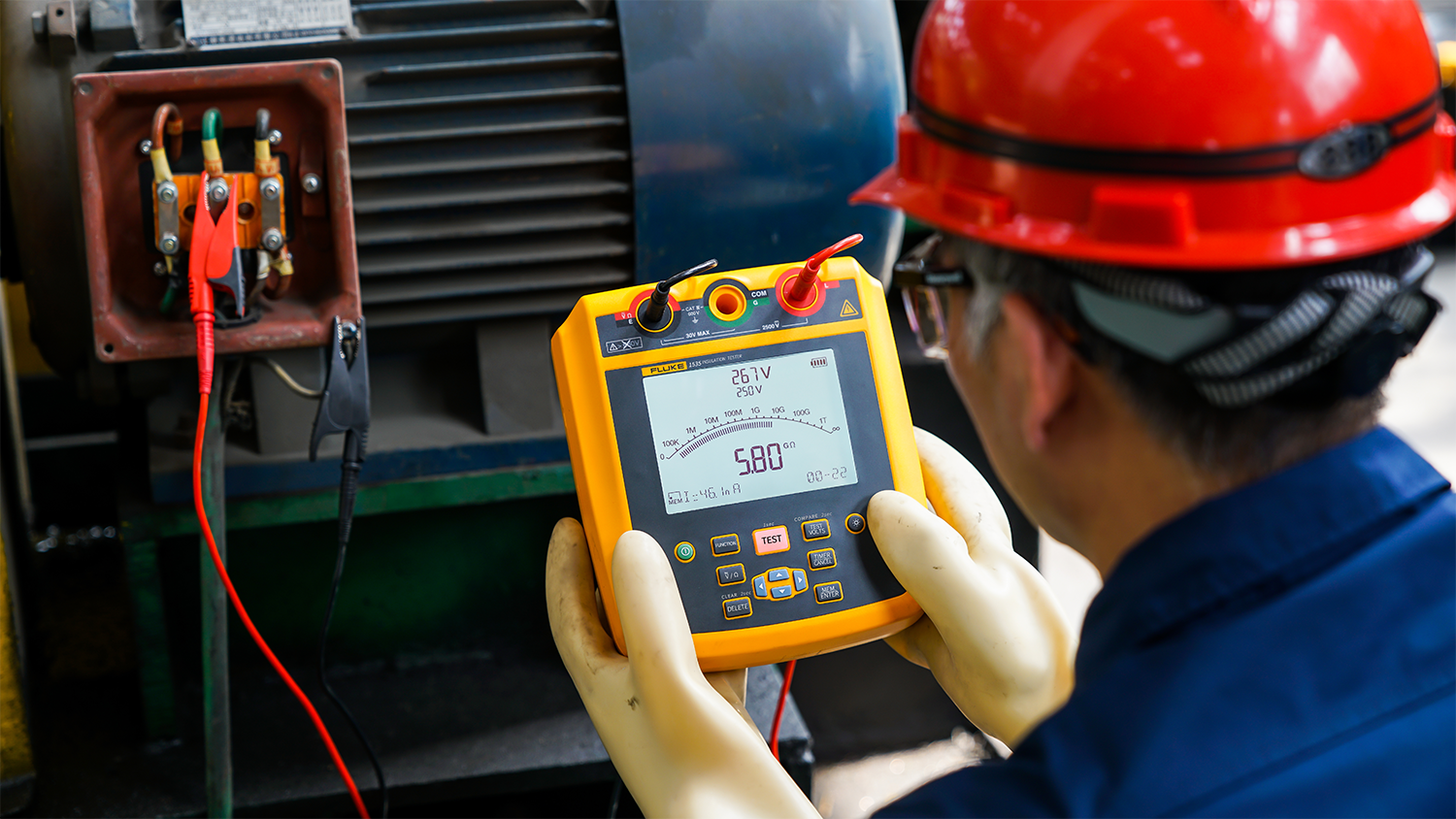

Periodically test insulation is mandatory to verify the integrity of coils and cables in motors, transformers, switchgears and electrical devices to keep safety of personal and assets. Fluke 1535 and Fluke 1537 could perform accurate and fast insulation test, also provide advanced functions like ramp voltage, polarity index, dielectric absorption ratio, and dielectric discharge (Fluke 1537) test, which help to effectively find defects such as partial or overall moisture and dirt, insulation breakdown and severe overheating and equipment aging.
  • Ultra-large LCD display
  • A digitalized insulation test with an analog bar graph
  • Preset test voltage: 250 V, 500 V, 1000 V, 2500 V
  • Insulation measurement: 200 kΩ to 500 GΩ
  • Polarity index (PI)
  • Dielectric absorption ratio (DAR)
  • Automatic power-off after 10 minutes of inactivity
Fluke 1537 provides additional features as:
  • Automatically calculate Dielectric Discharge (DD)
  • 5mA shortage current ensures faster and reliable test result
  • ACV / DCV / resistance measurement
  • Adjustable testing voltage:  250 V to 2500 V with step of 100 V
  • Ramp mode, linearly increase test voltage (100 V/s)
  • User definable tags, timed tests, and measurement results storage
  • Breakdown voltage indicator
  • Mini USB interface used to download measurement data

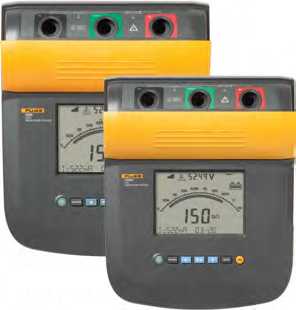

Fluke 1555 and 1550C Insulation Resistance Testers
The Fluke 1555 and redesigned Fluke 1550C Insulation Resistance Testers offer digital insulation testing up to 10 kV, making them ideal for testing a wide range of high voltage equipment including switchgear, motors, generators and cables
  • Capacitance and leakage current measurement
  • Ramp function for breakdown testing
  • Warning function alerts the user that line voltage is present and gives a voltage reading up to 600 V AC or DC for increased user safety
  • Measurements can be stored in up to 99 memory locations, and each location is assigned a unique, defined label for easy recall
  • Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (Pl) with no additional setup
  • Three year warranty
