Install and troubleshoot wired and Wi-Fi networks faster with the LinkIQ Cable+Wi-Fi+Network Tester. Cable test results in a graphical format allow quick troubleshooting. Verify or troubleshoot network device connectivity and understand the Wi-Fi environment. Get productive with a large, color, gesture-based display. All in a rugged package backed by legendary Fluke support.

  • Cable performance testing up to 10GBASE-T plus troubleshooting (distance to fault, wire map, toning)
  • Network features include ping, switch diagnostics (IP address, name, port / VLAN, and advertised data rates)
  • Ethernet Alliance-certified PoE Verification detects the PoE class (1-8) and power, and performs a load test
  • Wi-Fi analysis to Wi-Fi 6E, including networks, channels, and access points
  • Manage results and print reports from LinkWare™ PC
  • Supports all Industrial Ethernet cabling (EtherNet/IP, PROFINET, EtherCAT, and others) and connectors (M8D, M12D, M12X)

Touch for Cable, Switch and Wi-Fi Answers

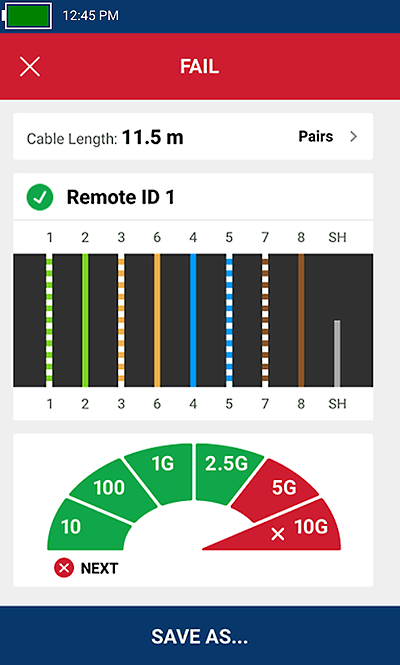

Cable test with remote attached shows remote ID number 1, length and pairing of each wire and cable performance of up to 2.5 Gb/s but failed the test due to a user-set limit of 10 Gb/s performance.

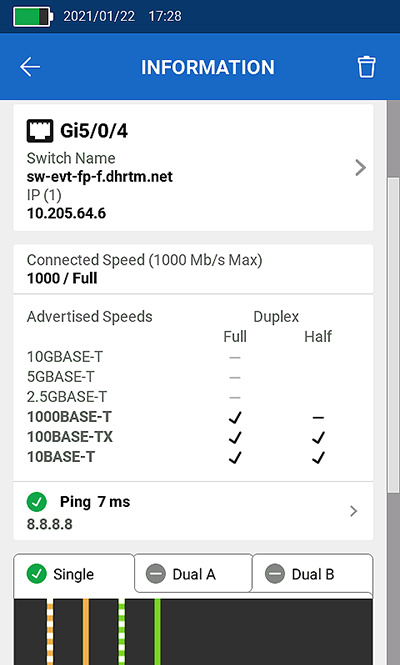

Switch port test shows switch name and IP address, connected port, and VLAN along with advertised speed and duplex settings. If a ping test is configured, the target address and average response time are shown. Scrolling down displays Power over Ethernet results.

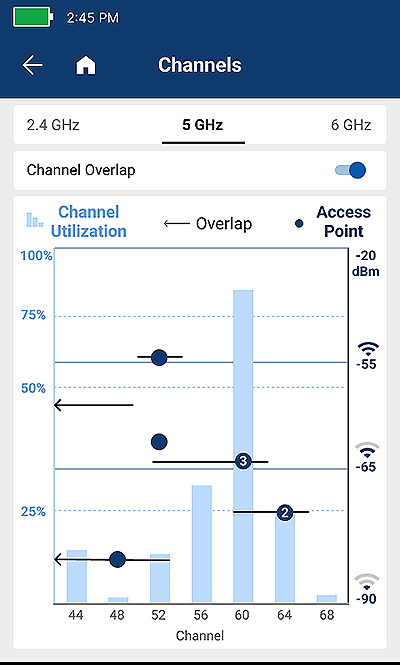

Channel test shows key information for understanding the Wi-Fi environment: number of AP’s seen on and overlapping each channel and their signal strength, plus total channel utilization. Touching a channel provides details on APs on or interfering with that channel.

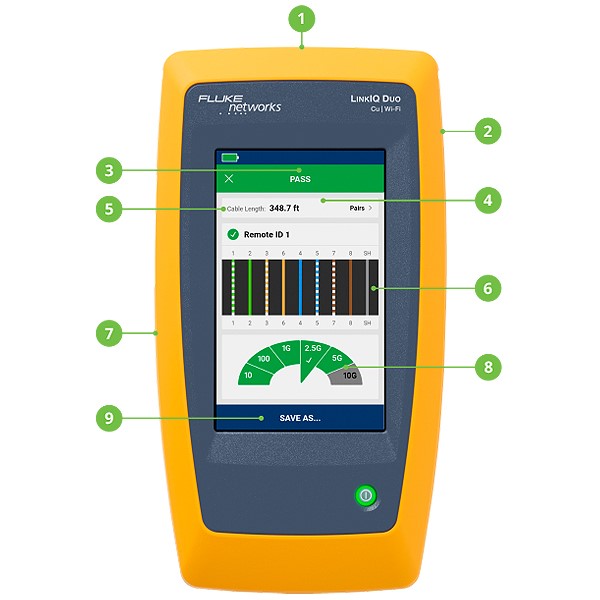

Compact, Rugged and Easy to Use

  1. RJ45 Port for connection to cable or switch portInternal antenna for Wi-Fi radio supporting 2.4 GHz, 5 GHz, and 6 GHz bands (LinkIQ Duo model only)
  2. Internal antenna for Wi-Fi radio supporting 2.4 GHz, 5 GHz, and 6 GHz bands (LinkIQ Duo model only)
  3. PASS/FAIL frequency-based measurement results
  4. Touch Screen Color Display
  5. Length measurement shows distance to termination, open, or short
  6. Wire map shows type and location of fault (miswires, split pairs, shorts, breaks)
  7. USB-C port for data export, software updates and charging
  8. Cable performance to 10 Gb/s shown in speedometer format
  9. Save up to 1000 test results on the unit and export to LinkWare™ PC

Choose the Model that Meets your Needs

Overview LinkIQ LinkIQ Duo LinkIQ Duo IE
Wiremap X X X
Length X X X
Performance to 10 Gb/s to 10 Gb/s to 10 Gb/s
Switch Info Speed, Name, Address, VLAN, Port Speed, Name, Address, VLAN, Port Speed, Name, Address, VLAN, Port
Network Connectivity X X X
Ethernet Alliance Certified PoE Measure, Test all 802.3 af/at/bt Measure, Test all 802.3 af/at/bt Measure, Test all 802.3 af/at/bt
Supported Wi-Fi Bands   2.4 GHz, 5 GHz, 6 GHz 2.4 GHz, 5 GHz, 6 GHz
Wi-Fi Tests   Networks, Channels, Access Points Networks, Channels, Access Points
Industrial Ethernet Connectors     M8D, M12D, M12X
Reporting App LinkWare PC™ LinkWare PC™ LinkWare PC™

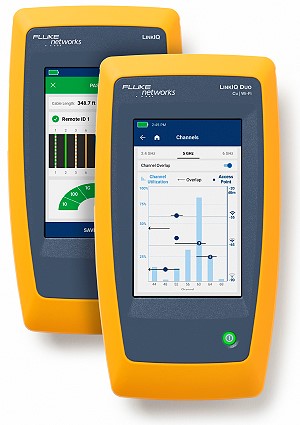

LinkIQ (left) and LinkIQ Duo testers

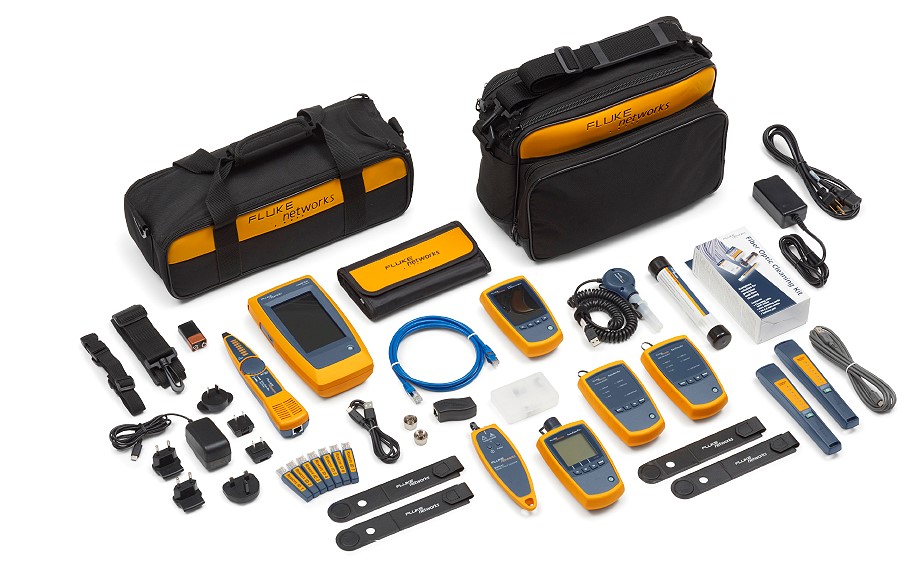

Bundle and Save over 30%

Save up to 30% and get more done with LinkIQ kits including fiber optic inspection, cleaning, testing, and connections to 10G, plus kits for coax, installation, and even electrical issues.

Network Troubleshooting Professional Kits Includes fiber power meter and source, inspection and cleaning tools.
Essential Copper Fiber Troubleshooting Kits Includes fiber fault locator and live fiber detector.
Copper and Fiber Connectivity Testing Kits Includes 10 Gb/s 1 Gb/s fiber media converters
Twisted Pair and Coax Network Kit Includes an additional tester for coax / twisted pair validation
LinkIQ Technician Kit Includes a toolkit for terminating copper cabling
Electrical & Network Troubleshooter Kit Includes a true-RMS digital multimeter

Fluke Premium Care Eligible

When you invest in your Fluke test tools, you want your money to go as far as possible. Fluke Premium Care is a paid offering that provides coverage above and beyond the original product warranty, so you don’t need to worry about unexpected downtime caused by damaged test equipment, accessories, or tools in need of calibration or repair.

LinkIQ Cable+Wi-Fi+Network Testers are Fluke Premium Care eligible, subject to availability.
